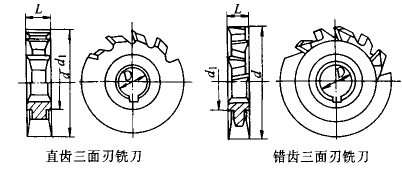

三面刃铣刀

注：×——有此规格

三面刃铣刀（GB/T6119.1-1996）（mm）
d? jsl6	D H7	d1 min	L k 4	5	6	8	10	12	14	16	18	20	22	25	28	32	36	40
50	16	27	×	×	×	×	×	-	-	-	-	-	-	-	-	-	-	-
63	22	34	×	×	×	×	×	×	×	×	-	-	-	-	-	-	-	-
80	27	41	-	×	×	×	×	×	×	×	×	×	-	-	-	-	-	-
100	32	47	-	-	×	×	×	×	×	×	×	×	×	×	-	-	-	-
125	32	47	-	-	-	×	×	×	×	×	×	×	×	×	×	-	-	-
160	40	55	-	-	-	-	×	×	×	×	×	×	×	×	×	×	-	-
200	40	55	-	-	-	-	-	×	×	×	×	×	×	×	×	×	×	×
