注: D≤32时L系列为:0.20,0.25,0.30,0.40,0.45,0.50,0.55,0.60,0.65,0.70,0.75,0.80,0.90,1.00,1.10,1.20,1.30,1.40,1.50,1.60,1.80,2.00;
D≥40时L系列为:0.30,0.40,0.45,0.50,0.55,0.60,0.80,1.00,1.20,1.60,2.00,2.50,3.00,4.00,5.00

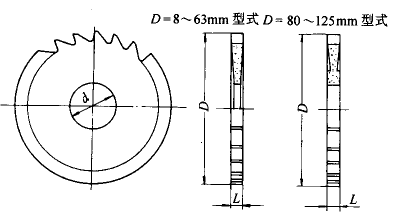

整体硬质合金锯片铣刀（GB/T14301-1993）（mm） |
||
d jsl6 |
D H7 |
L jsl1范围 |
8 |
3 |
0.20～0.80 |
10 |
5 |
0.20～0.80 |
12 |
5 |
0.20～1.00 |
16 |
5 |
0.20～1.20 |
20 |
5 |
0.25～1.50 |
25 |
5 |
0.30～1.80 |
32 |
8 |
0.30～2.00 |
40 |
10 |
0.30～2.50 |
50 |
13 |
0.30～4.00 |
63 |
16 |
0.30～4.00 |
80 |
22 |
0.60～5.00 |
100 |
22 |
0.80～5.00 |
125 |
22 |
1.00～5.00 |
